A urine specimen cup may look like a simple laboratory container, but certain features can make an important difference during specimen collection. One of those features is the temperature strip.

A urine cup with temperature strip allows the collector to check the temperature of a freshly collected urine specimen directly from the outside of the container. This quick temperature check can help determine whether the specimen temperature is consistent with a recently provided sample before it continues through the testing process.

Temperature verification is particularly important in workplace drug testing, occupational health programs, clinical laboratories, collection facilities, rehabilitation programs, and other environments where maintaining specimen integrity is important.

But what exactly does a urine temperature strip measure, how does it work, and why is the commonly referenced range 90°F to 100°F?

Here is what laboratory professionals and specimen collectors should know.

What Is a Urine Cup With a Temperature Strip?

A urine specimen cup with temperature strip is a specimen collection container that has a temperature-sensitive indicator attached to the outside of the cup.

The strip allows staff to determine the approximate temperature of the collected specimen without placing a conventional thermometer directly into the urine.

For example, the LabMedUSA 90mL Urine Specimen Cup with Temperature Strip features a built-in temperature indicator along with graduated markings, a screw cap, labeling area, and polypropylene construction. The cup has a 90 mL capacity and a 53 mm diameter and is supplied in quantities designed for professional collection environments.

The temperature strip itself does not test the chemical composition of the urine. Instead, it provides an immediate physical measurement that can become part of the specimen acceptance and collection process.

What Is the Purpose of the Temperature Strip on a Urine Cup?

The primary purpose of a urine temperature strip is to help assess whether the temperature of a specimen is consistent with urine that has just been collected.

Human urine leaves the body warm and then gradually moves toward room temperature after collection. Because of this, measuring specimen temperature shortly after collection provides useful information about the condition of the sample at the time it was received.

For U.S. Department of Transportation regulated workplace drug testing, collectors must check specimen temperature no later than four minutes after receiving the sample.

The acceptable DOT specimen temperature range is:

90°F to 100°F

or

32°C to 38°C

The DOT specifically requires the collector to determine the temperature by reading the temperature strip attached to the collection container.

This makes the temperature strip an important part of the specimen collection workflow rather than simply an optional marking on the cup.

Why Is 90°F to 100°F Important in Urine Specimen Collection?

The 90°F to 100°F range is widely associated with freshly collected urine specimens in regulated workplace drug testing procedures.

According to current DOT requirements, a collector checks the specimen within four minutes and records whether its temperature falls within the acceptable 32°C to 38°C, or 90°F to 100°F, range.

The timing matters.

A urine sample naturally begins changing temperature once it leaves the body. Waiting too long before reading the temperature strip on the urine cup can therefore reduce the usefulness of the measurement.

For this reason, temperature verification should be performed according to the collection protocol being followed rather than at an arbitrary point later in specimen handling.

It is also important to understand that the 90°F to 100°F range discussed here specifically applies to DOT-regulated specimen collections. Non-DOT testing programs, healthcare facilities, laboratories, and individual organizations may have their own procedures and requirements.

How Does a Urine Temperature Strip Work?

Many adhesive temperature strips use temperature-sensitive materials that respond visually as temperature changes.

Reversible liquid-crystal temperature indicators, for example, contain materials that change their optical appearance at different temperatures. This allows a particular number or temperature section to become visually highlighted when the strip reaches that temperature range.

On a urine specimen collection cup, the strip is attached to the exterior wall of the container. Heat from the urine transfers through the cup wall and reaches the temperature-sensitive indicator.

The collector then reads the activated temperature section according to the instructions for that particular strip.

This approach has several practical advantages:

• The temperature indicator remains outside the specimen.

• No conventional thermometer needs to be inserted into the urine.

• Temperature can be checked quickly after collection.

• The reading can become part of a standardized specimen collection procedure.

• Staff can perform the check without transferring the sample to another container.

The exact appearance and color response can vary between temperature strip manufacturers, so collectors should always follow the instructions supplied with their specific collection cup or temperature indicator.

How Do You Read a Temperature Strip on a Urine Cup?

Reading a urine cup temperature strip is generally straightforward.

After the specimen has been collected, the collector observes the temperature indicator attached to the outside of the cup. A temperature number, block, or section typically changes appearance to indicate the specimen's approximate temperature.

Many reversible liquid-crystal temperature indicators use a highlighted color to identify the active temperature reading. However, designs vary, so the markings printed on the specific strip should always be used as the reference.

For regulated collections, timing is especially important.

For example, DOT regulations require the temperature check to occur within four minutes after the employee provides the specimen.

A simple collection workflow may therefore look like this:

1. Receive the freshly collected urine specimen.

2. Keep the specimen container properly controlled according to collection procedures.

3. Observe the temperature strip promptly.

4. Identify the indicated temperature.

5. Compare the reading with the temperature requirements of the applicable collection protocol.

6. Record the result where required.

7. Continue with labeling, specimen handling, transport, or additional collection procedures.

Does the Temperature Strip Detect Drugs?

No.

A temperature strip on a urine specimen cup does not detect drugs, medications, alcohol, infections, proteins, glucose, or other chemical components of urine.

Its function is temperature measurement.

Drug testing requires a separate rapid test device, laboratory testing method, or other analytical procedure.

This distinction is important because a urine collection cup with a temperature strip and a multi-panel drug testing cup are not necessarily the same product.

A standard specimen cup with temperature strip is primarily a collection and temperature-verification device.

Can a Temperature Strip Prove That a Urine Sample Is Valid?

Not by itself.

Temperature is one indicator that collectors may use when assessing a specimen, but a temperature reading alone does not provide a complete laboratory determination of specimen validity.

For DOT-regulated testing, a temperature outside the specified range triggers specific follow-up collection procedures.

Other specimen characteristics and laboratory procedures may also be considered depending on the testing program.

Therefore, it is more accurate to say that a temperature strip helps support specimen integrity checks rather than saying that it independently proves whether a specimen is valid or invalid.

Why Use a Urine Specimen Cup With the Temperature Strip Built In?

Integrating the temperature indicator directly onto the collection container can simplify the workflow.

Instead of locating a separate temperature-measuring device after the specimen has been collected, staff can check the reading directly on the cup.

This can be particularly useful in environments handling many specimens, including:

• Clinical laboratories

• Occupational health facilities

• Workplace drug testing programs

• Drug screening centers

• Hospitals and clinics

• Diagnostic centers

• Rehabilitation facilities

• Research laboratories

• Mobile specimen collection programs

A urine collection cup with temperature strip can help create a more standardized collection process while reducing the number of separate supplies required at the collection station.

Temperature Measurement Without Contacting the Specimen

One useful feature of an externally mounted temperature strip is that the temperature indicator does not need to be placed directly into the urine.

Current DOT standards specify a temperature strip attached to the collection container, while also permitting certain alternative technologies as long as the measurement approach does not contaminate the specimen.

For laboratories and collection facilities, keeping measurement devices separate from the specimen can help simplify sample handling and reduce unnecessary direct contact with collected material.

What Should You Look for in a Urine Collection Cup?

Temperature measurement is important, but it is only one part of a well-designed urine specimen collection cup.

When selecting collection supplies, facilities may also want to consider:

Capacity

The container should provide enough room for the specimen volume required by the applicable testing procedure.

Clear Graduations

Visible volume markings make it easier for staff to assess how much specimen has been collected.

Secure Screw Cap

A well-designed closure helps keep the specimen contained during handling and transportation.

Durable Material

Polypropylene is commonly used for medical and laboratory specimen containers because it is lightweight and suitable for many routine specimen-handling applications.

Identification Area

Clear labeling supports organized specimen identification and processing.

Temperature Indicator

For collection protocols that require immediate temperature verification, an integrated strip provides a convenient way to obtain the reading directly from the container.

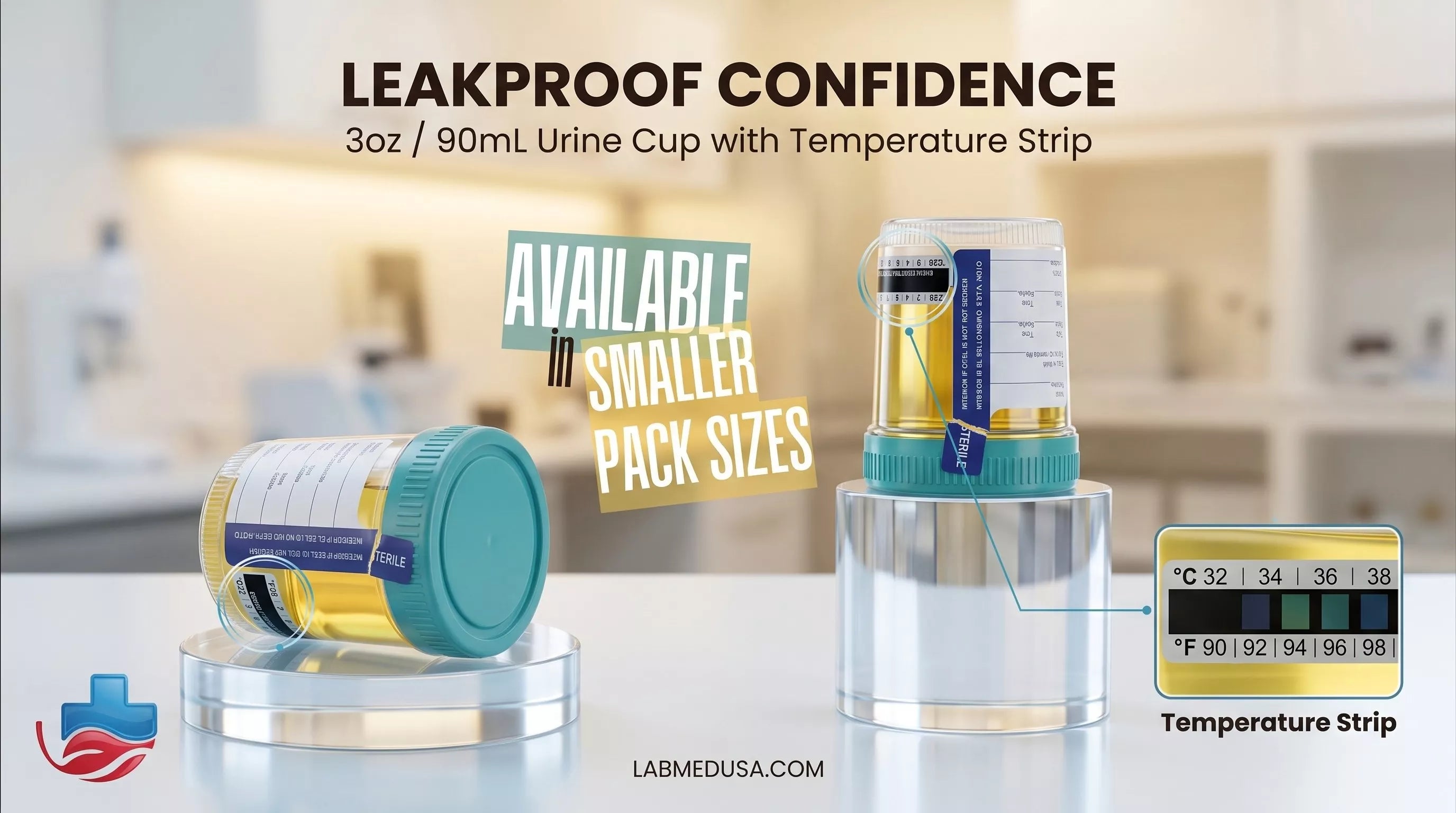

LabMedUSA 90mL Urine Specimen Cup With Temperature Strip

For facilities that need a professional specimen collection solution, LabMedUSA offers a 90mL Urine Specimen Cup with Temperature Strip designed for routine sample collection workflows.

Product features include:

• 90 mL specimen capacity

• 53 mm cup diameter

• Polypropylene construction

• Built-in temperature indicator strip

• Clear graduated volume markings

• Identification labeling

• Secure screw-cap design

• Sterile specimen collection format

• Convenient quantities for professional specimen collection

• Now available in smaller pack quantities

The addition of smaller pack quantity options gives clinics, laboratories, occupational health providers, mobile collection services, and smaller testing facilities more flexibility when purchasing urine specimen cups.

Instead of committing to a large case quantity, customers can choose a smaller quantity that better matches their specimen volume, storage space, or purchasing needs. Smaller packs can also be useful for facilities that want to evaluate the product before moving to larger-volume orders.

For higher-volume operations, larger quantities remain practical for maintaining a consistent supply of urine specimen cups with temperature strips.

This added flexibility makes the product suitable for both smaller collection programs and facilities processing specimens at a larger scale.

Urine Temperature Strip FAQ

What temperature should a fresh urine specimen be?

For DOT-regulated workplace drug testing, the acceptable specimen temperature range is 90°F to 100°F, or 32°C to 38°C, when measured within the required collection window.

How quickly should urine temperature be checked?

Under current DOT regulations, the specimen temperature must be checked no later than four minutes after the employee provides the specimen.

Where is the temperature strip located on a urine specimen cup?

The temperature strip is generally attached to the outside wall of the collection container so that it can respond to the specimen temperature without being immersed directly in the urine.

What does a urine temperature strip measure?

It measures the approximate temperature of the urine specimen. It does not perform drug detection or diagnostic testing.

Can a urine temperature strip detect synthetic or substituted urine?

A temperature strip does not chemically identify synthetic or substituted urine. It only provides temperature information. An unexpected temperature may lead to additional procedures under the applicable collection protocol, but temperature alone does not provide a complete laboratory determination of specimen validity.

Why do drug testing cups have temperature strips?

Temperature strips provide collectors with a quick way to check whether specimen temperature falls within the range required by their collection procedure. In regulated workplace drug testing, this is part of maintaining specimen collection integrity.

Are all urine specimen cups equipped with temperature strips?

No. Some urine containers are designed only for routine specimen collection, while others incorporate temperature indicators specifically for workflows where immediate temperature verification is needed.

Can I Buy Urine Specimen Cups With Temperature Strips in Smaller Quantities?

Yes. The LabMedUSA 90mL Urine Specimen Cup with Temperature Strip is now available in smaller pack quantities, providing more purchasing flexibility for clinics, laboratories, collection centers, and other facilities that may not require a full case at one time.

Smaller pack options can be especially convenient for lower-volume testing programs, limited storage spaces, or facilities trying the product before ordering larger quantities.

A Small Feature With an Important Role in Specimen Collection

The temperature strip on a urine cup may occupy only a small area of the container, but it can provide valuable information during the first few minutes after specimen collection.

By allowing staff to check specimen temperature directly from the exterior of the cup, a urine specimen cup with temperature strip supports efficient collection workflows without requiring a thermometer to contact the sample.

For facilities performing workplace screening, occupational health testing, laboratory specimen collection, or other professional urine collection procedures, choosing the right specimen container can help make collection more organized and consistent.

The LabMedUSA 90mL Urine Specimen Cup with Temperature Strip combines specimen collection, graduated volume measurement, secure closure, labeling, and convenient temperature indication in one container.

And with smaller pack quantities now available, facilities can choose an order size that better fits their specimen collection volume without necessarily purchasing a full case.

For professional specimen collection supplies, explore LabMedUSA's selection of urine specimen cups, urine collection supplies, laboratory consumables, and specimen transport products.
